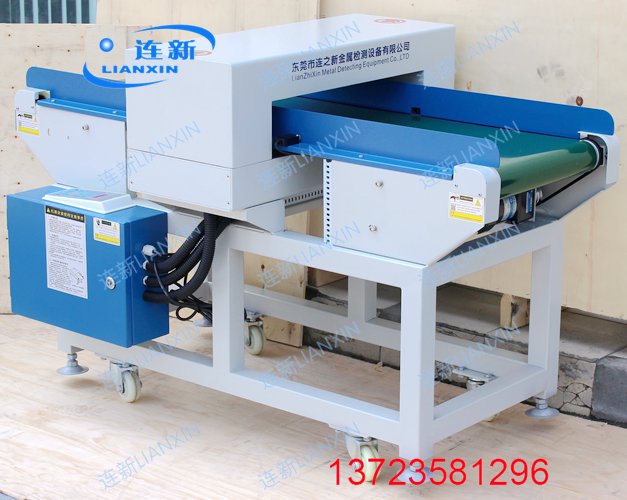

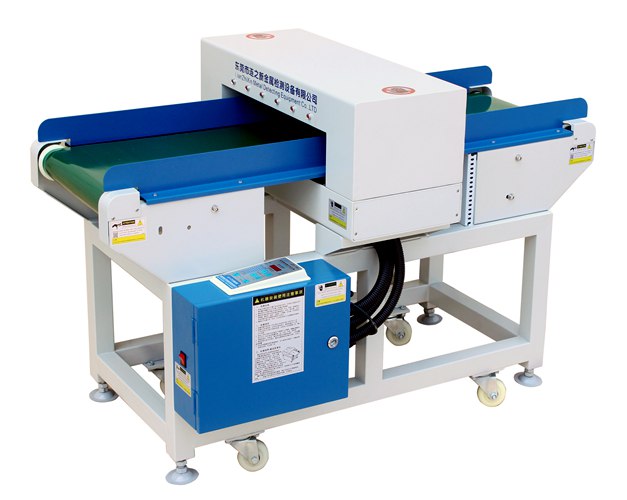

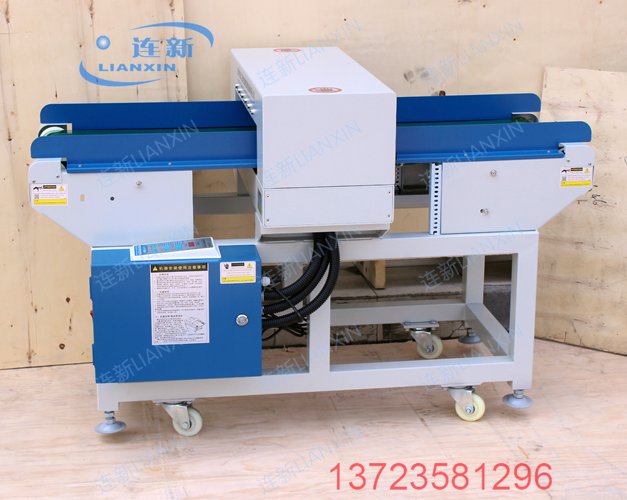

Small conveyor needle detector machine

Model：JZQ-7300B

JZQ-7300B type full steel anti-jamming high sensitivity needle detector machine
Designed for the whole shoes, accessories, accessories, shoes materials, such as small items of needle design. Occupy less space and lower power consumption, full steel electrostatic spraying craft. Practical, durable, beautiful!



Application places:

Check the broken needle: toys, shoes, hats, baby products, underwear, socks, fabrics, non-woven fabrics, embroidery, towel, bath towel, carpet, all exports of textiles and apparel products such as gloves, handicraft check breakage.

A needle: hardware buttons, zippers, beads, day word buckle, clothing handbags metal accessories needle machine.

The aluminum foil packing: can be used in the aluminum foil packing food metal foreign body check. For testing all metal foreign body please select new DLM - 508 series of products.

Function characteristics:

S full steel frame exquisite fuselage of the lacquer that bake, entire machine rigidity is strong, resistant to impact, suitable for docking assembly line;

S movement in Japan, imported needle detector machine specialized food-grade non-toxic conveyor belt, a universal casters convenient mobile;

S strong anti-jamming computer chip integrated circuits, dual 24 groups enough sensors, is superior to the traditional double probe needle detector machine;

S all function keys are light touch membrane switch, avoid mechanical keys easy damage faults;

S position display function, six parts shows exact breakage position function;

S have counting function, the difference between through good quality and bad quality (quality goods, defective goods, total);

S alarm functions as sounds, lights and shows three kinds of frequency, sensitivity level 1 ~ 10 regulation;

S the AD hoc protection circuit, ten minutes without were seized by automatic stop;

S all after open the total power supply function, not completed before start the motor;

S has A/B/C (finished product alarm stop/accessories/products), to adapt to different products of needle detector;

S when they tested the broken needle, iron objects, two sound and light alarm, and stop a throwback to the starting point, and automatically run again;

S high sensitivity, detection of longmen net height is 15 cm, diameter of 1.0 mm.



【相关参数】

型号	MODEL	4010	4015	4020
检测宽度mm	Detection width	400	400	400
灵敏度（空载时)	Detection ability	≥Φ0.8	≥Φ1.0	≥Φ1.2
检测高度	Detection hight	100mm	130mm	180mm
检测方式	Detection method	磁场诱导,电脑检知。Magnetic induction
感应调节	Detection adjustment	1-10级可调加1～种报警选择模式
报警方式	Alarm method	声光报警并停机自动倒带。Sound / light alarm and return
电源	Power supply	Ac220V 50-60Hz。
功率	Pated output	90W。
机身尺寸	Dunension	长L1330×W宽750×H高910-930-980
净重	Weight	大于150-160KG。

Description: the sensitivity of the high and low by the detection height (i.e, channel or longmen) to determine the highest accuracy. The higher the longmen, sensitivity is reduced accordingly. The corresponding height above the standards and testing is in the condition of empty machine test results; Channel height and width detection, can be customized according to the requirement.

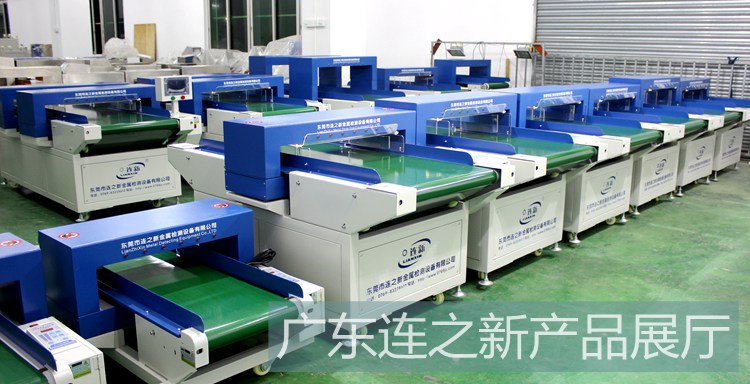

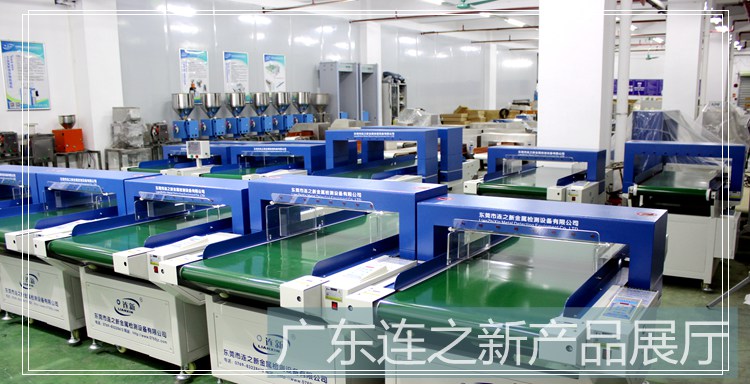

广东连之新大量现货检针机现机销售，欢迎上门选购！
