Applicable places:
Check the broken needle: shoe material, women's clothes, men's wear, student clothing, work clothes, baby products, knitwear, underwear, socks, cloth, non-woven fabric, embroidery, towel, bath towel, gloves, toys, handicrafts and all export textiles inspection of broken needles.
Over the needle: metal buttons, metal zippers, day buckles, beads chain, brooches and other clothing bags metal accessories inspection machine.
Aluminum foil packaging: suitable for aluminum foil packaging of food metal foreign body inspection, if you need to detect all metal foreign objects, please select DLM-508 series products.
Product advantages:

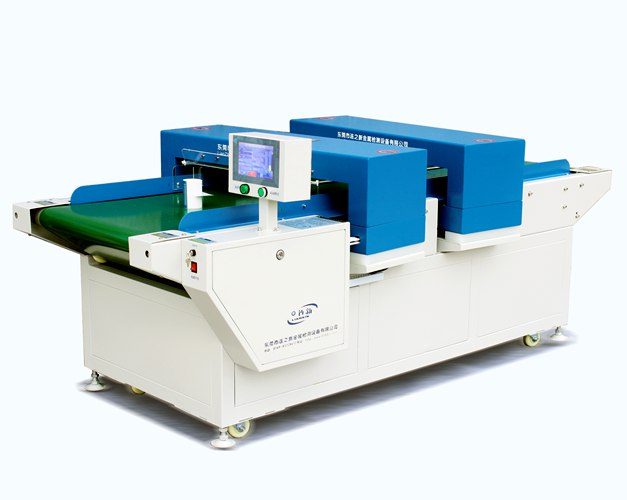

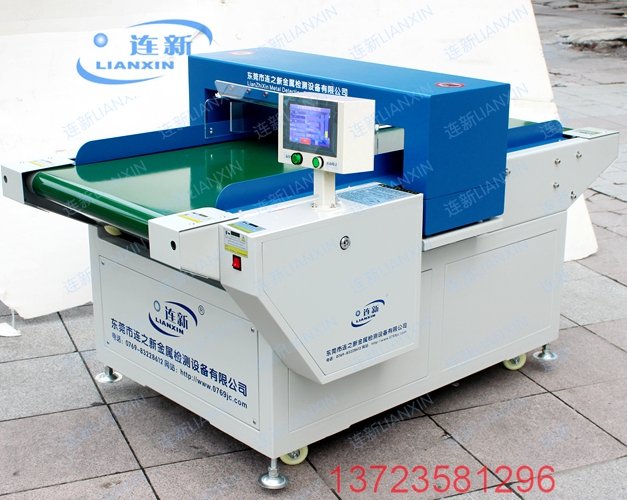

Fuselage use all square tube steel frame electrostatic spraying technology, sealing edge dustproof, stand steady weight, sitting strength, anti-interference better, anti impact, and traditional needle machine using corner iron and ABS plastic or aluminum alloy foil testing machine more durable and durable;
It has all the features of the conventional needle machine. And have
The height of the probe can be made into various combinations, and all kinds of height increasing pads can be selected to increase or reduce the height of the probe so as to suit the heights and sensitivity of various needles.
The super strong anti-interference computer chip integrated circuit, the upper and lower probe double row 32 sets of sensors are superior to the traditional double probe needle checking machine.
The American function key touches the screen to avoid the disadvantage that the mechanical keys are easy to damage.
It has the function of position display, and the eight points show the exact position of the broken needle.
It uses the Silicon computing speed of us 25 million times per second and data conversion accuracy up to 2.4 of the high-performance computer processing chips.
All digital design of patent technology, large scale and high precision SMT patch circuit board.

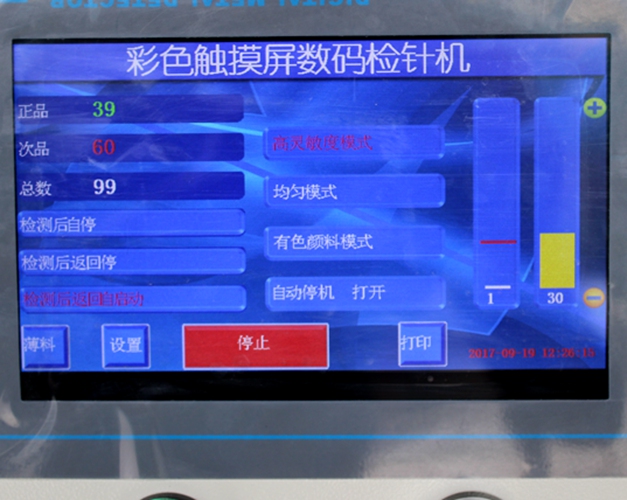

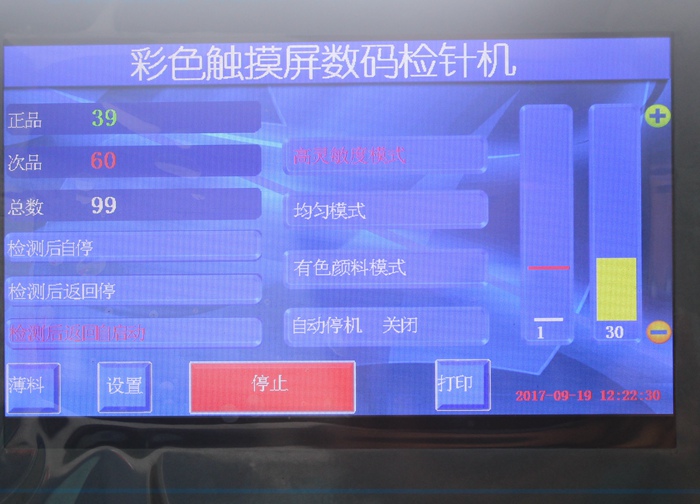

Innovative design of color full touch capacitive screen design, super large screen LCD graphics display, simple operation
Micro thermal and silent printer, working data is easy to archive.
Built in high precision clock, reliable by built-in rechargeable battery.
The 100 order induction display shows the environment and the iron content of the detected object. The sensitivity mark of innovative design is set.
100 level sensitivity digital control, which has very wide sensitivity adjustment range and fine adjustment.
Setting up three file safety locks, no lock, low level safety and advanced safety, reliable management.
A variety of working modes, thin materials and thick materials can be adapted.
A variety of detection modes for innovative design, high sensitivity mode (suitable for clothing and accessories), uniform pattern, and coloured pigment pattern (suitable for shoes and leather).
It has environmental friendly automatic shutdown mode, intelligent operation switch design, accurate counting and precise position display.
Wireless high-speed remote data transmission, remote monitoring (optional functional components)
The certified brand high reliable switching power supply can effectively resist the interference on the power line.
Technical parameter
Detection width: 600mm
Detection height: 100mm 150mm 200mm
Test criteria: Fe > > 0.8mm > 1.2mm > 1.5mm
Transmission speed: 25~30m/min
Power: 220V power: 100W
Weight: 220KG volume: L1600*W1050*H1000 (mm)
Explanation: the sensitivity is determined by the detection height (i.e., the channel or Longmen) to determine the highest detection accuracy. The higher the Longmen, the sensitivity will be reduced accordingly. The above corresponding height and testing standard are the result of detection under the condition of the empty machine, and the height and width of the detection channel can be customized according to the requirements.

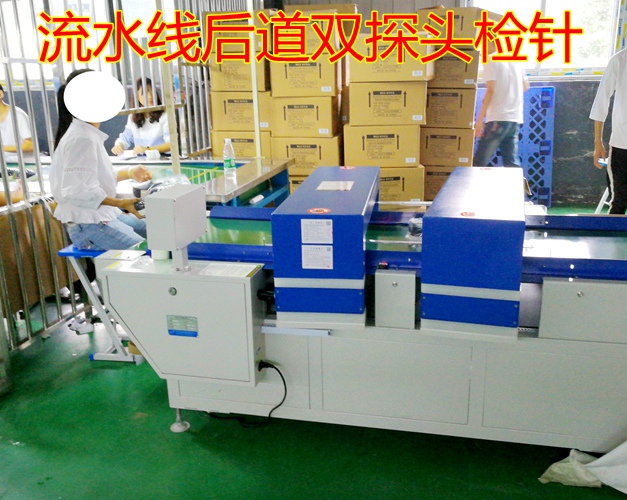

新款液晶屏型检针机 鞋厂使用现场：
